New Project: Sukhoi SU-31 (SU-29T): (Updated 6th Oct 2025)

This exciting new project is now available. The CAD model showcases remarkable precision, with all coordinates meticulously calculated through advanced mathematical techniques, ensuring an unparalleled level of accuracy for Wings, Fuselage, Empennage, Air intake, Cowl and even the Wing Fillets. The model is developed from SU-29T (SU-31 prototype) and SU-31 original data sources.

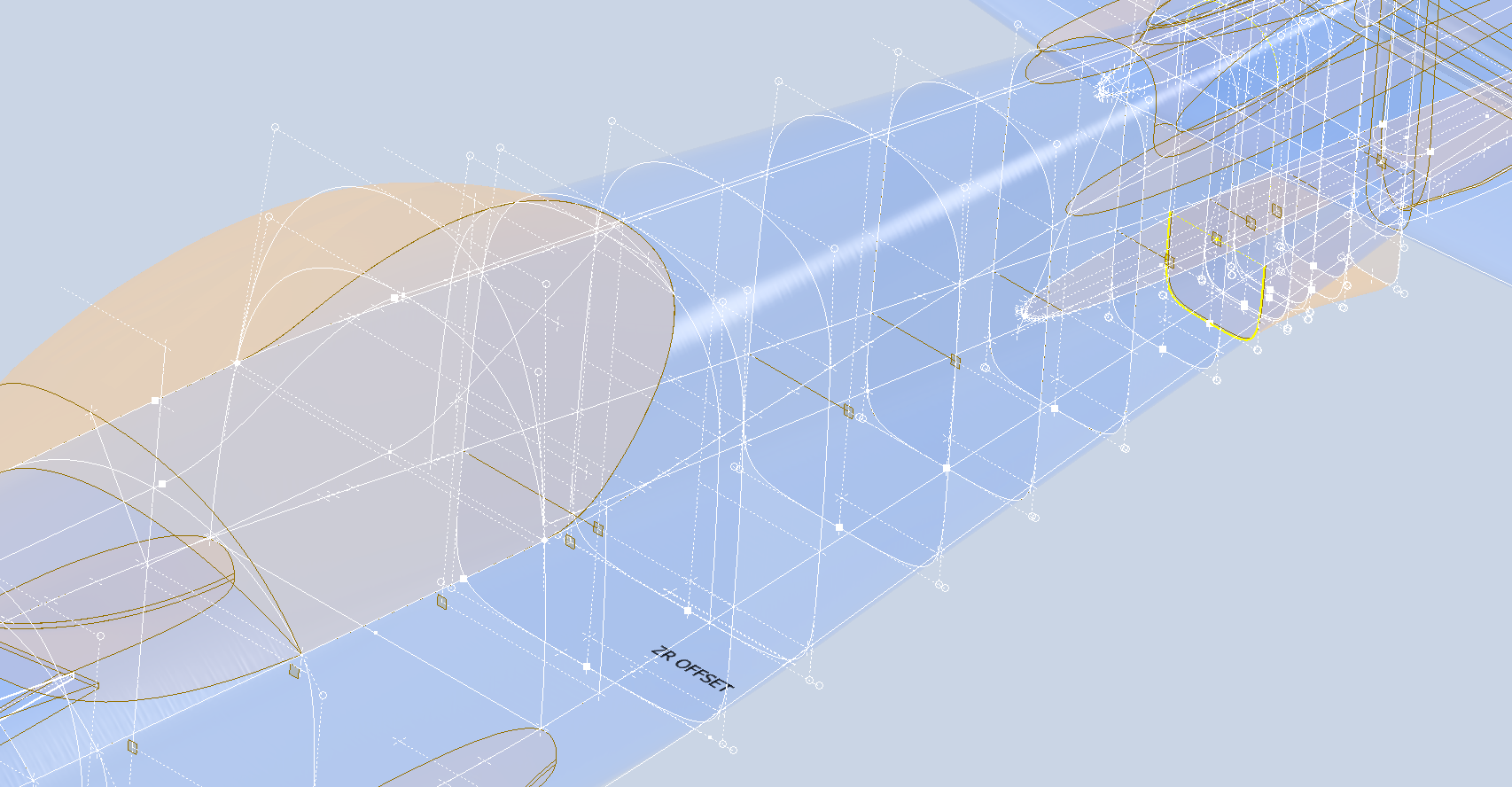

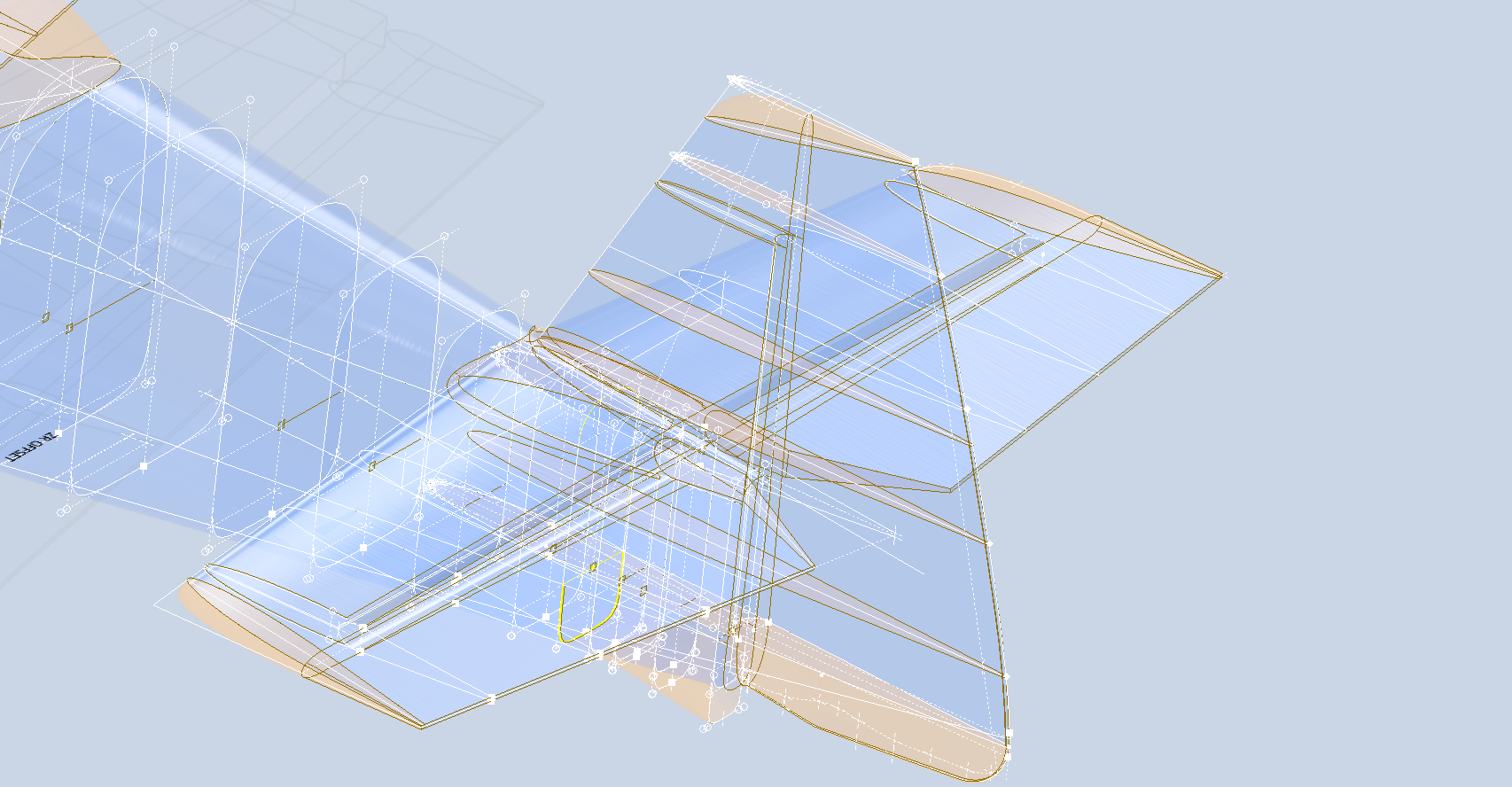

This early release package contains the completed 3D CAD model available in several formats, including DWG, STL, Parasolid XB and IGES. Additionally, the project features preliminary 2D detailed drawings. All bulkheads and ribs in the model are represented as individual surface models, making them ideal for model makers to use for profiling.

The original blueprints are not included in this package. You can purchase this early release package for only **£44.00 (GBP)!** To make your purchase, please use PayPal and include a contact email for sending your download links. PAYPAL LINK

Download links will be sent on receipt.

Please get in touch with feedback and comments to hughtechnotes@gmail.com

*Please note that we have not included information about the undercarriage structure. Currently, we do not have verified data on this aspect, and since we do not trace from blueprints, we will refrain from including it in this project until we can obtain reliable information.
